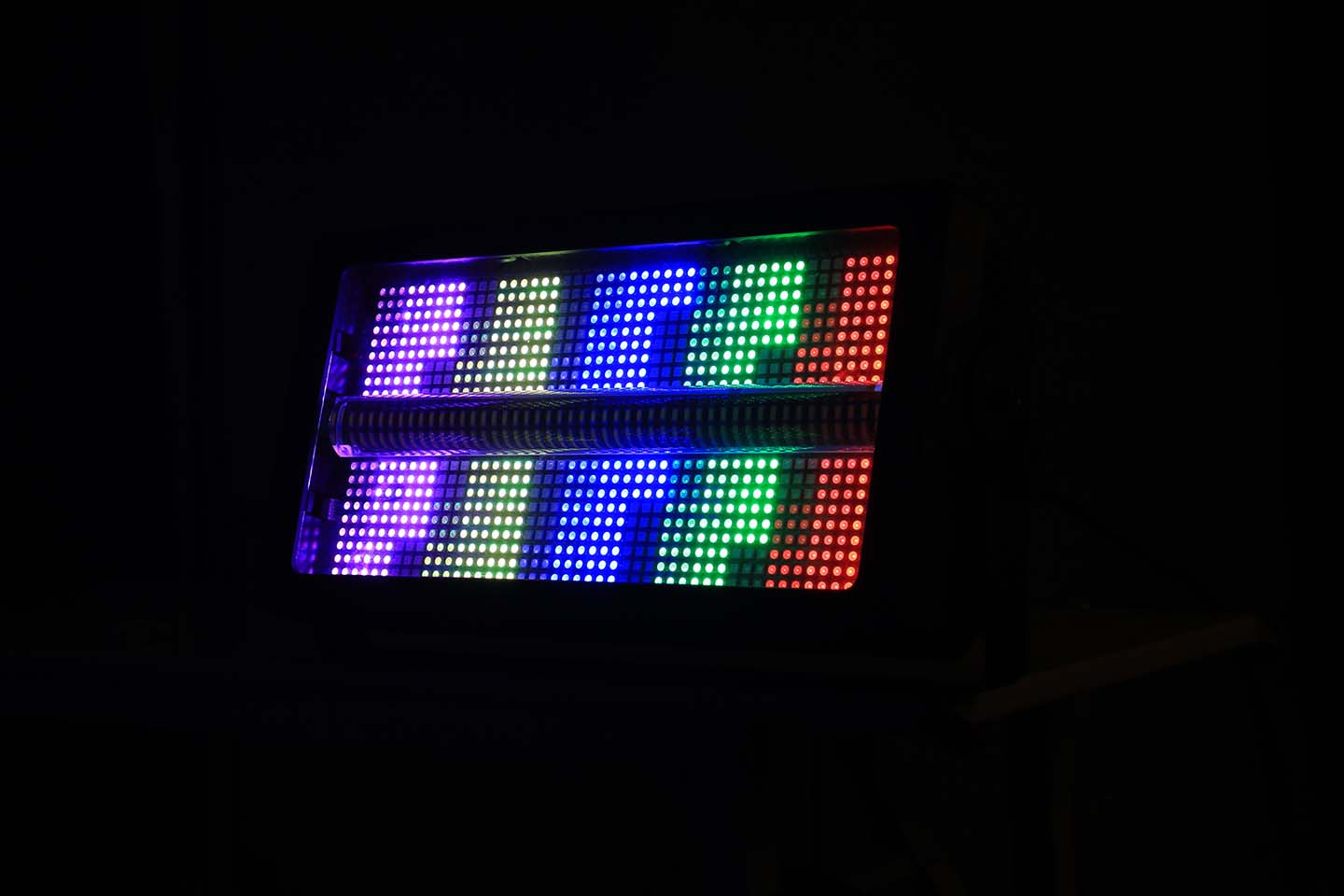

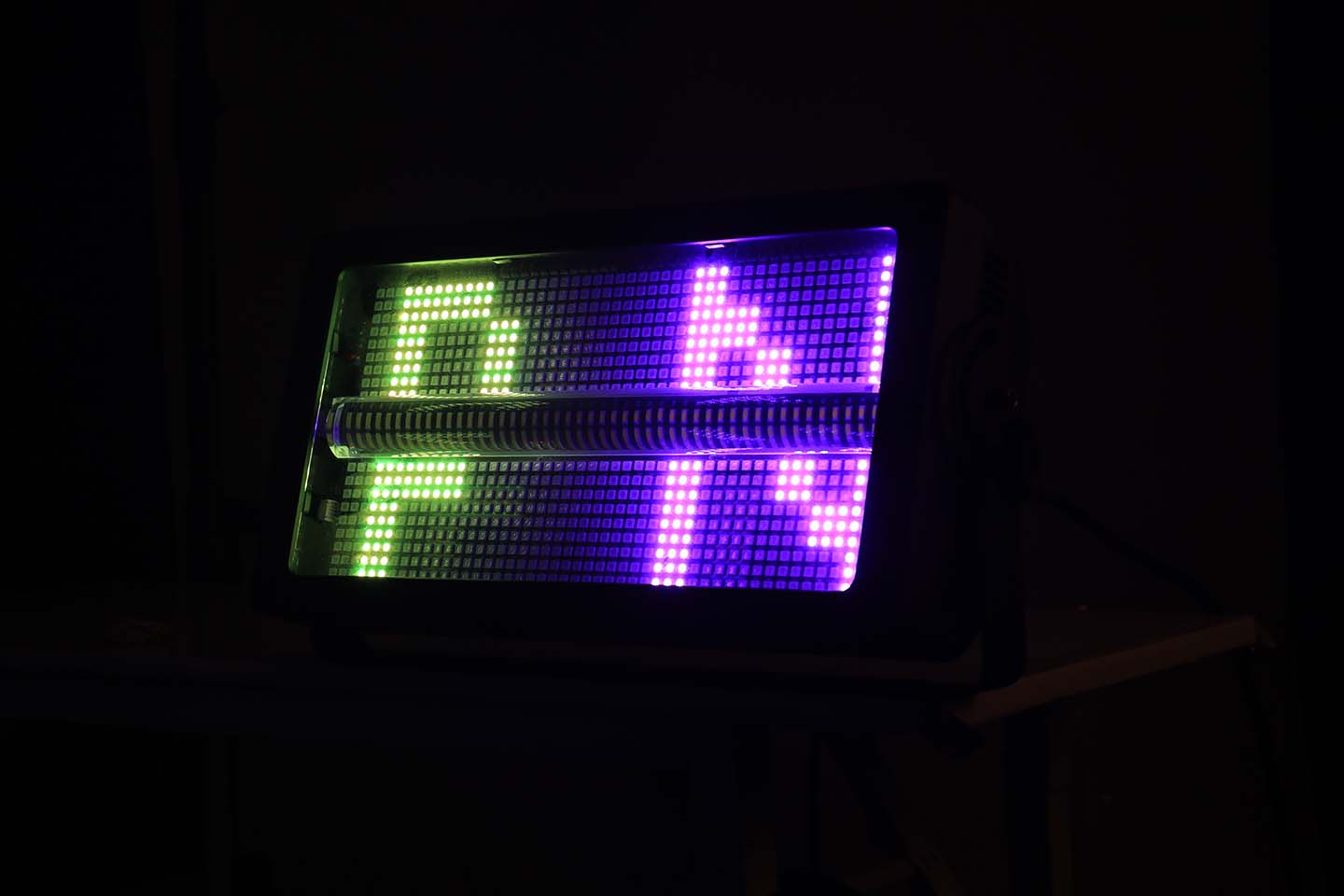

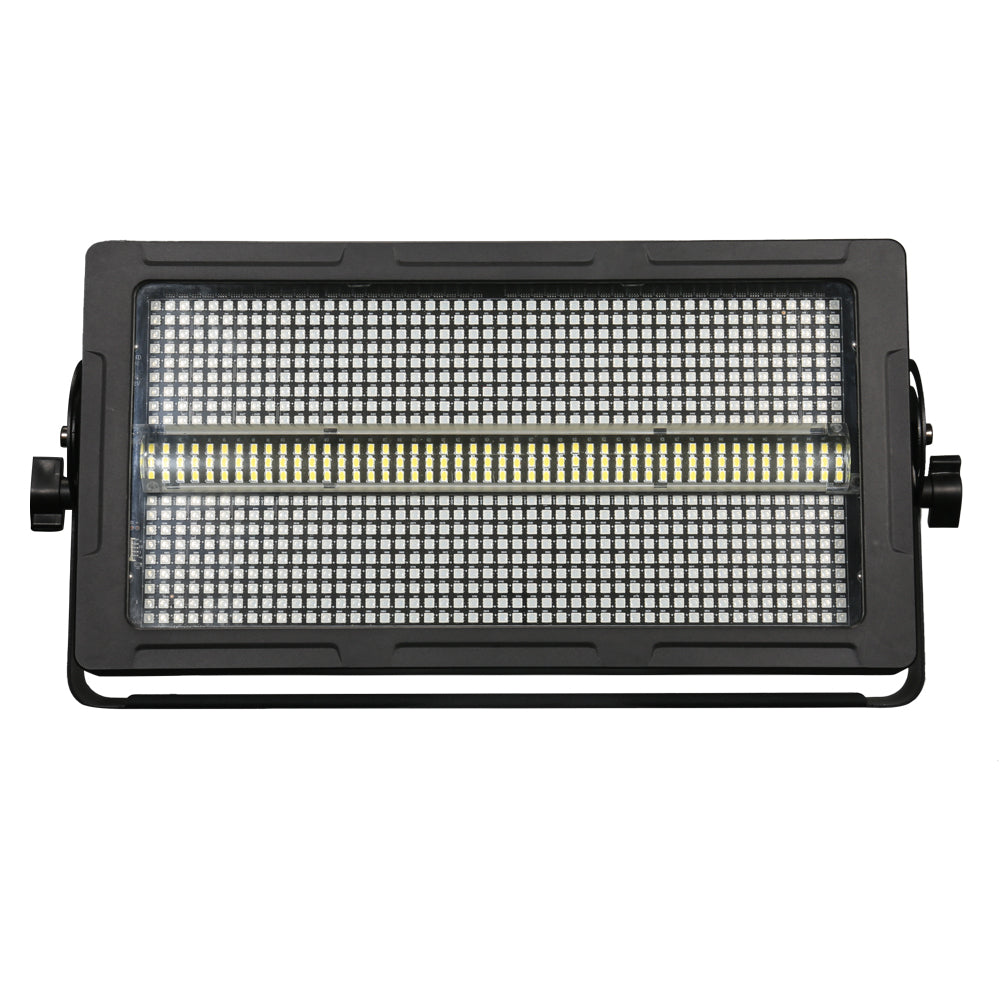

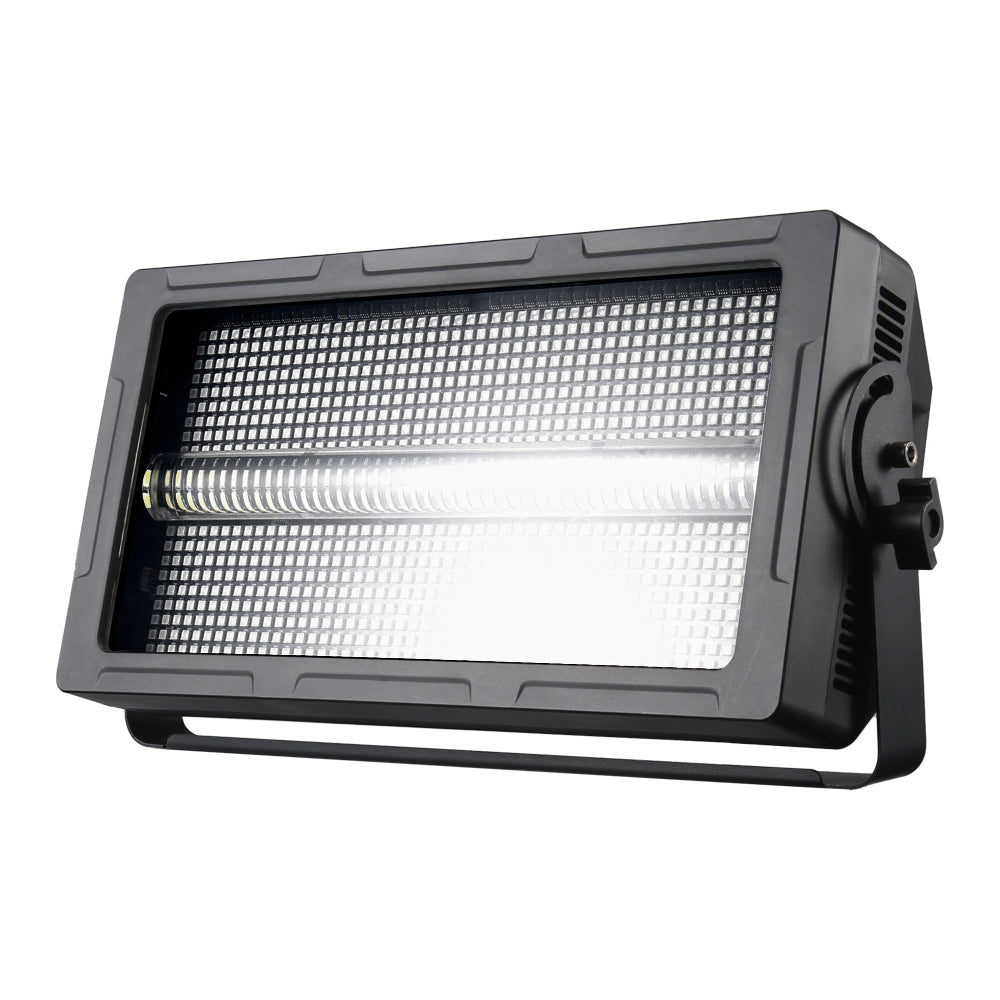

250W Full-Color Segmented Strobe Light Bar — Dynamic Chase Effects for Any Stage

Transform any venue with this professional 250W full-color strobe bar. Featuring 960 high-density SMD LEDs across 16 independently controlled segments, it delivers breathtaking chase sequences, color-changing effects, and powerful strobe bursts — all with precise DMX512 control.

Key Features

Power: 250W | AC110–220V, 50/60Hz
Light Source: 960 × 0.6W SMD LED — high-density, even output

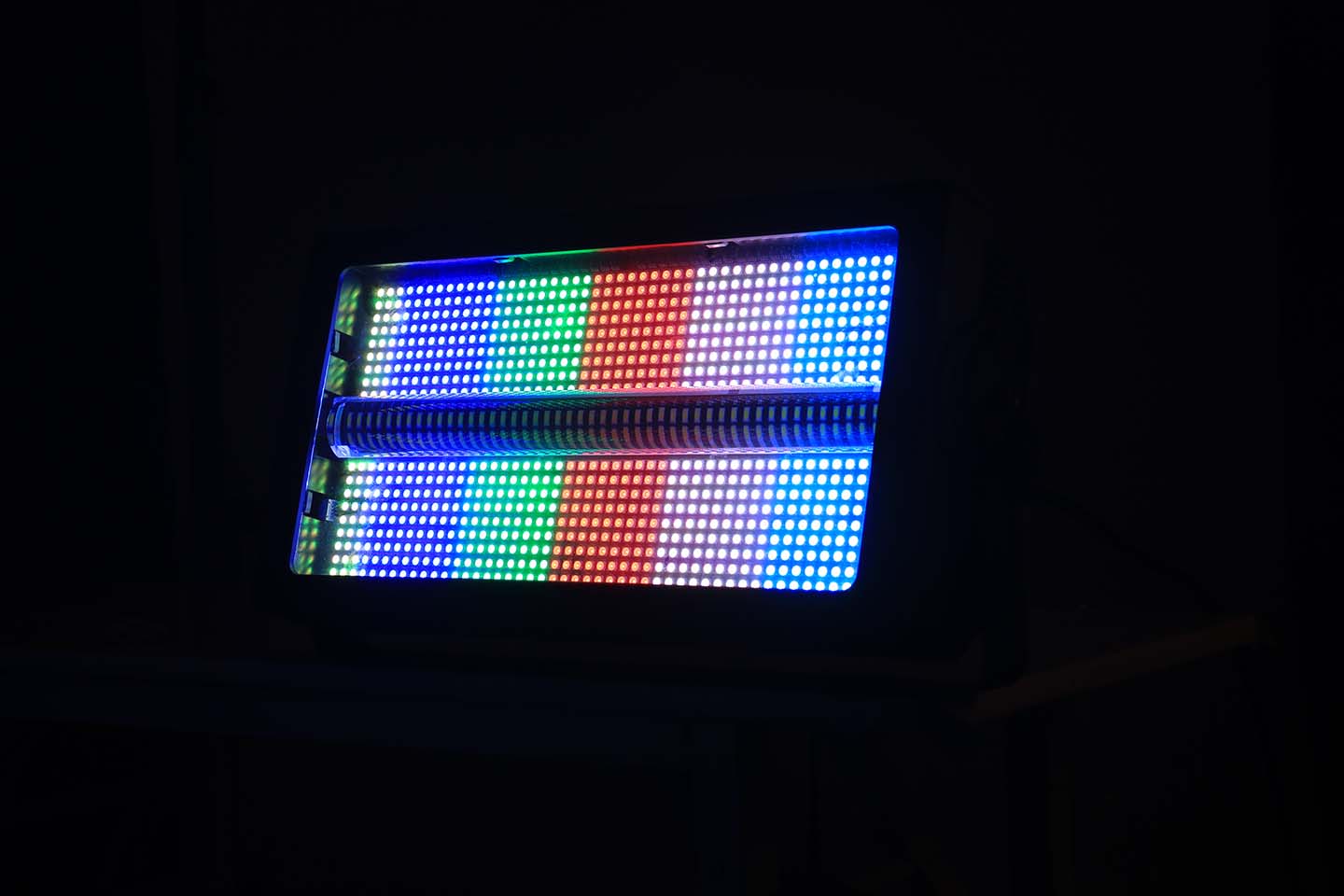

Segments: 16 independently controlled segments for chase effects
Dimming: 32-bit 0–100% smooth linear dimming
Strobe Speed: 1–30Hz adjustable
Control Modes: DMX512 (5CH) | Master/Slave | Sound Active | Auto Run | RDM

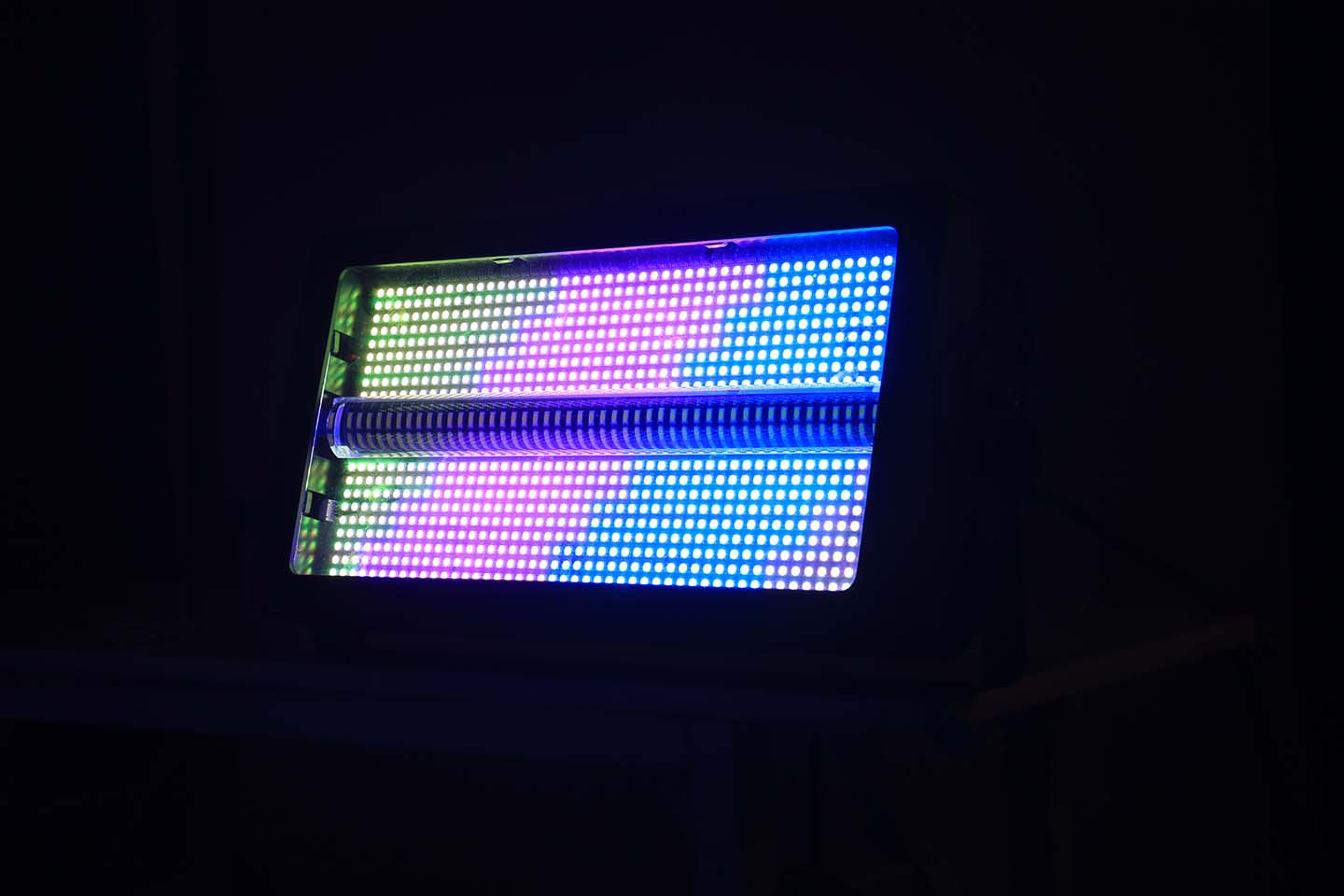

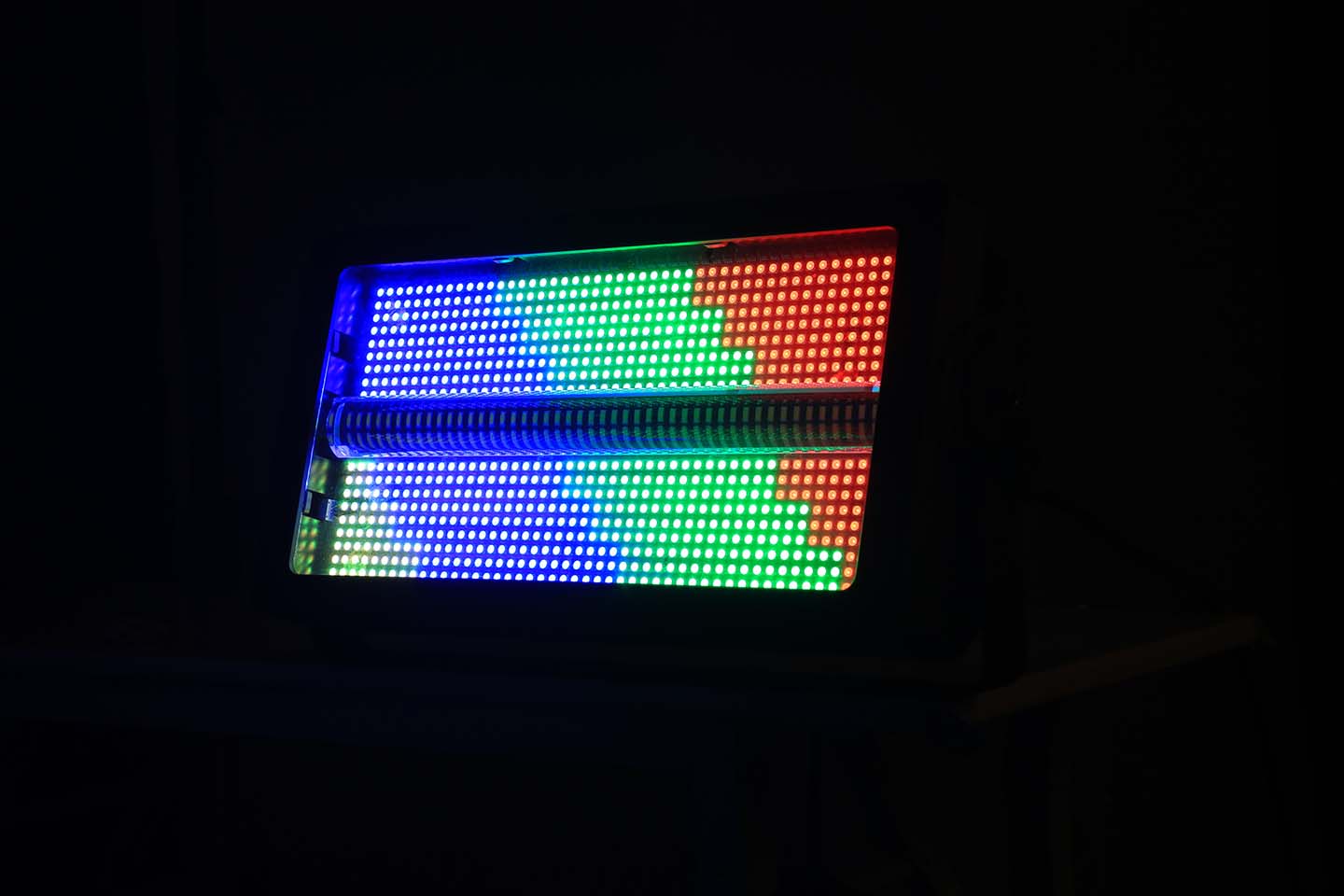

Effects: 8-segment chase, color changing, strobe
Cooling: Fan cooling system
Housing: Black plastic, IP20 rated

Ideal For

Weddings, bars, discos, ballrooms, KTV, home parties, and professional stage productions.

Product Details

8+8 Flash Lights

Name: 250W Full-Color Segmented Strobe Light Bar | 960 LEDs, 16-Segment, DMX512 – Stage & Event
Brand: stageming
SKU: kmsmv250ST21007
Price: 165.00 USD
Availability: InStock

Features: horse racing + high explosive flash

User's Manual

Thank you for using our products. This manual contains important information about product use, installation and maintenance methods. Please read it carefully, install and operate as required, and keep the manual properly for emergency. When this product is delivered, the performance and packaging are complete. All users shall strictly follow the warnings and operating instructions stated in this specification. Any damage caused by misuse is not within the Company's warranty. This manual is subject to technical changes without prior notice.

Product Attributes

Parameter	Value
Operating Voltage	AC100～240V，50～60Hz
Power	250W
LED specifications	0.2W 5050 RGB triplex lamp bead + 1W 5054 white lamp beads
A number	640+80PCS
Light source life	≥50000h
Features	horse racing + high explosive flash
Aiming	Linear dimming, 0 brightness to 100% adjustable
Channel	CH4、CH16、CH32、CH35
Display	Digital display
Control model	☑ DMX control ☑ Primary / slave synchronization mode ☑ Self-control ☑ Sound control
Light and lamp color	black
IP grade	IP20, for indoor use

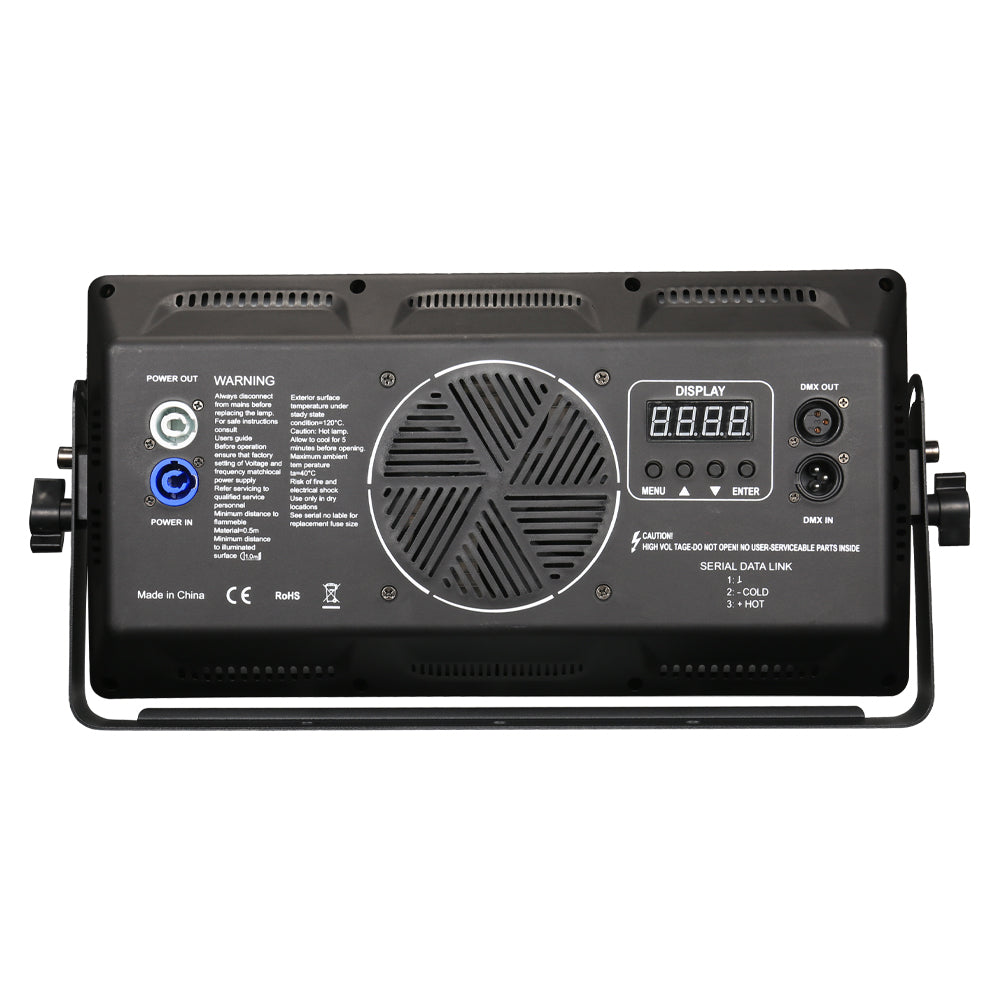

Display Panel

Project	No.	Silk-Screen	Function
Button	1	MENU	Enter / view the menu function
	2	▲	View the previous menu
	3	▼	View the next menu
	4	ENTER	Determination key

Display Function

Menu	Options and Settings	Explain
DMX Address	d001 ～ d512	DMX address code select 1-512
Channel Mode	CH4	4-Channel mode
	CH16	16-Channel mode
	CH32	32-Channel mode
	CH35	35-Channel mode
Red Dimming	000 ～ 255	Red dimming, 0-100% brightness
Green Dimming	000 ～ 255	Green dimming, 0-100% brightness
Blue Dimming	000 ～ 255	Blue dimming, 0-100% brightness
White Dimming	000 ～ 255	White dimming, 0-100% brightness
Strobe	000-004 Close the flash 005-255 Strobe (larger value = faster speed)	Strobe control
RGB Self-Walking	0-62 effect choices	Press ENTER to enter effect selection. The larger the value, the faster the speed.
W Self-Walk Effect	0-50 options	White self-walk effect
RGBW Self-Walking	1-62 effect choices	RGBW self-walking effect
Sound Control Mode	Sound control ON	Sound control mode enabled
Sound Sensitivity	000 ～ 255	Higher value = higher sensitivity

DMX Channel Modes

[DMX 1] 4-Channel Mode (Mode 1)

CH	Value	Function
CH1	000-255	R Dimming, 0-100%
CH2	000-255	G Dimming, 0-100%
CH3	000-255	B Dimming, 0-100%
CH4	000-255	W Dimming, 0-100%

[DMX 2] 16-Channel Mode (Mode 2)

Channel	Value	Function
CH1	000-255	Total dimming, dark to bright
CH2	000-004	Close flash
	005-255	RGB strobe, fast to slow
CH3	000-255	R red dimming, dark to bright
CH4	000-255	G green dimming, dark to bright
CH5	000-255	B blue dimming, dark to bright
CH6	000-255	RGB macro, monochrome effect color controlled by RGB dimming
CH7	000-127	RGB macro normal, speed slow to fast
	128-255	RGB macro inversion, speed slow to fast
CH8	000-004	Turn off W flash
	005-255	W strobe, fast to slow
CH9	000-255	W white dimming, dark to bright
CH10	000-255	W macro, brightness controlled by W dimming
CH11	000-127	W macro normal, speed slow to fast
	128-255	W macro inversion, speed slow to fast
CH12	000-004	Turn off RGBW strobe
	005-255	RGBW strobe, slow to fast
CH13	000-251	RGBW macro
	252-255	RGBW sound mode
CH14	000-127	RGBW macro normal, speed slow to fast (or sound sensitivity low to high)
	128-255	RGBW macro inversion, speed slow to fast (or sound sensitivity)
CH15	000-255	RGB background color
CH16	000-255	RGB background color dimming

[DMX 3] 32-Channel Mode (Mode 3)

Channel	Value	Function
CH1	000-255	R1 red dimming, dark to bright
CH2	000-255	G1 green dimming, dark to bright
CH3	000-255	B1 blue dimming, dark to bright
...	...	...
CH22	000-255	R8 red dimming, dark to bright
CH23	000-255	G8 green dimming, dark to bright
CH24	000-255	B8 blue dimming, dark to bright
CH25	000-255	W1 white dimming, dark to bright
CH26	000-255	W2 white dimming, dark to bright
...	...	...
CH31	000-255	W7 white dimming, dark to bright
CH32	000-255	W8 white dimming, dark to bright

[DMX 4] 35-Channel Mode (Mode 4)

Channel	Value	Function
CH1	000-255	Total dimming, dark to bright
CH2	000-004	Close flash
	005-255	RGB strobe, fast to slow
CH3	000-004	Turn off W flash
	005-255	W strobe, fast to slow
CH4	000-255	R1 red dimming, dark to bright
CH5	000-255	G1 green dimming, dark to bright
CH6	000-255	B1 blue dimming, dark to bright
...	...	...
CH25	000-255	R8 red dimming, dark to bright
CH26	000-255	G8 green dimming, dark to bright
CH27	000-255	B8 blue dimming, dark to bright
CH28	000-255	W1 white dimming, dark to bright
CH29	000-255	W2 white dimming, dark to bright
...	...	...
CH34	000-255	W7 white dimming, dark to bright
CH35	000-255	W8 white dimming, dark to bright
